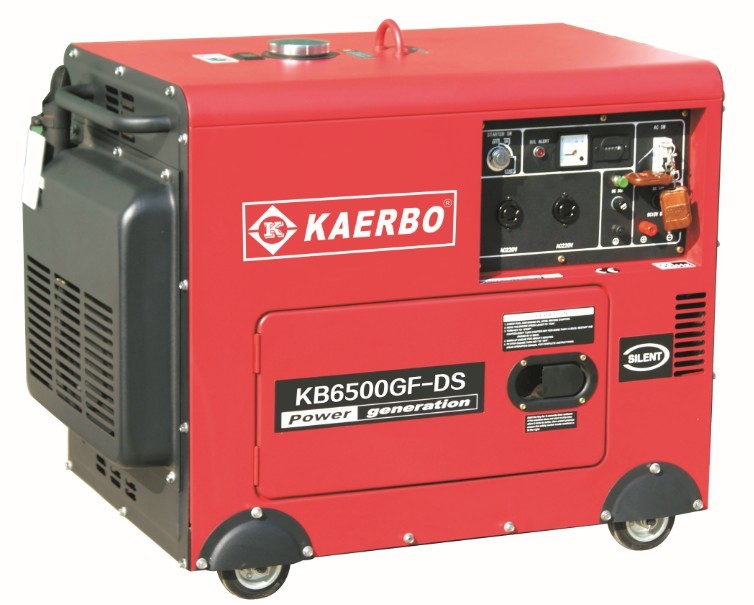

Silent Diesel Generator

Model

KBJ6500GF-DS

Genset Type

Brushless,Self Exciting,2 Pole,Single Phase

AC Frequency           (HZ)

50/60

AC Voltage                 (V)

0 - 300V

Cont.AC Output        (KVA)

5.0/5.5

Max.AC Output         (KVA)

5.5/6.0

DC Output                (V/A)

12/8.3

Insulation

F

Power Factor          (COS)

1.0

Engine Model

KB186FE

Engine Type

Air Cooled,4 Stroke,Single Cylinder

Displacement           (CC)

418

Engine Speed          (RPM)

3000/3600

Starting System

Electric Start

Max.Power               (HP)

10

Fuel Tank Capacity   (L)

16

Cont. Operating       (HRS)

8

Operating Noise Level (dB)

70

Gross Weight           (KG)

170

 Dimension               (MM)

955×575×760
