Model
KBS40

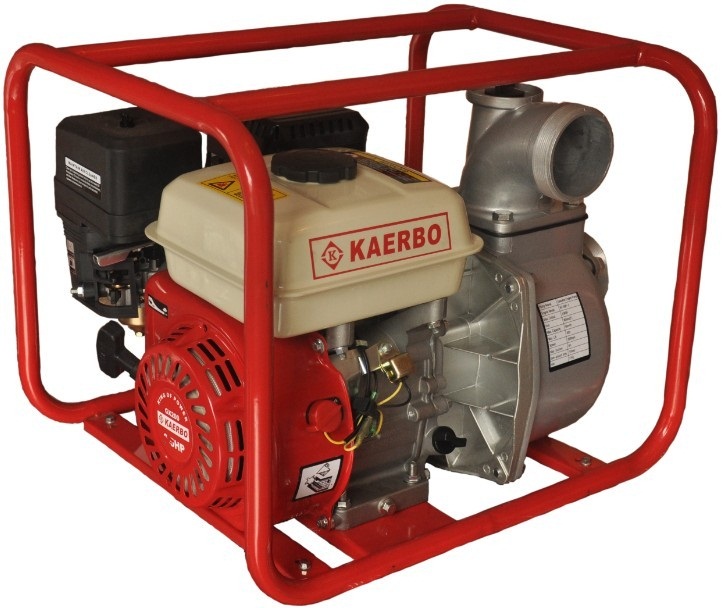

Pump Set
Suck Grade(m)
6
Lift(m)
26
Volume of Flow(m3/h)
80
Diameter of in&out Pipe(mm/inch)
100/4.0
Engine
Type
KB177F
4-stroke/air cooling/single cylinder/ OHV horizontal shaft
Displacement(cc)
270
Max. Output(kw)
5.2
Ignition Mode
Transistorized Magneto
Starting Mode
Recoil Start
Fuel Tank Capacity(l/gal.)
6/1.59
Continuous Work Time(h)
2.5
Noise Level(7m)(dB)
66
Dimensions
Dimensions(L×W×H)(mm/inch)
670*540*580
Dry Weight(kg/lb)
48
20FT Qty
128
40FT Qty
272
40HQ Qty
