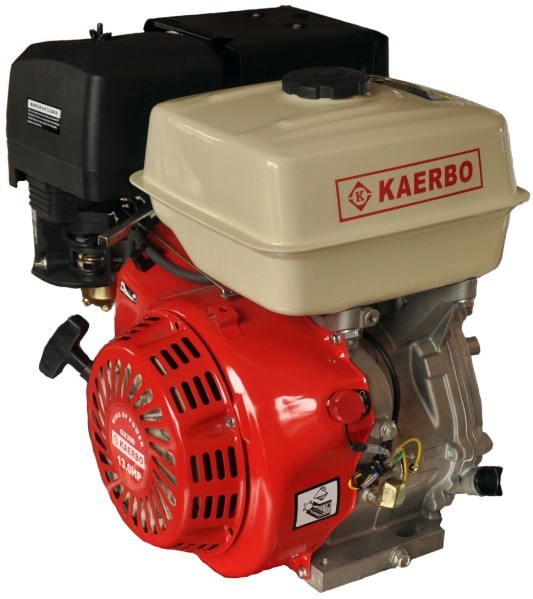

KB190F(15HP)

Model

KB190F

Engine

Type

4-stroke/air cooling/single cylinder
/OHV horizontal shaft

Bore*Stroke(mm)

90*66

Compression

8.5:1

Displacement(cc)

420

Max. Output(hp/rpm)

15/3600

Max.Torque(n.m/rpm)

28/2500

Ignition Mode

Transistorized Magneto

Starting Mode

Recoil Start

Fuel Tank Capacity(l/gal.)

6.5/1.72

Oil Capacity(l/gal.)

1.1/0.29

Consumption(g/kw.h)

385

Noise Level(7m)(dB)

75

Options

Transmission

1/2 sprocket reduction(C series)、1/2
clutch reduction(L series)

E-start System

DP190F-E

Remote System

√

Dimensions

Dimensions(L*W*H)(mm/inch)

490*440*520/19*17*21

Dry Weight(kg/lb)

33/73

20FT Qty

220

40FT Qty

480

40HQ  Qty

575
