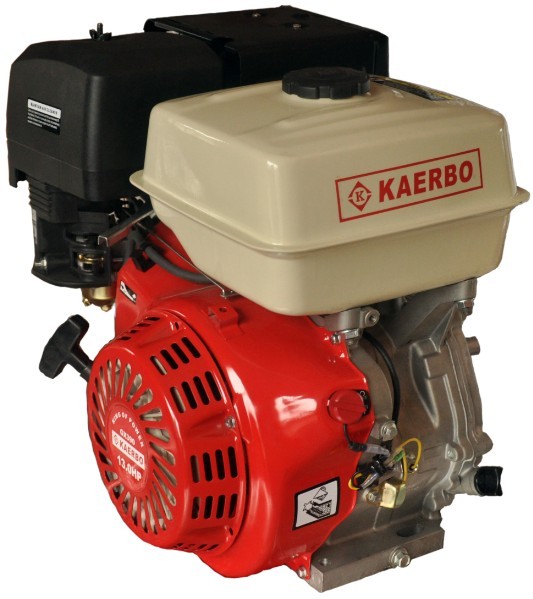

Model
KB188F
Engine
Type
4-stroke/air cooling/single cylinder /OHV horizontal shaft
Bore*Stroke(mm)
88*64
Compression
8.2:1
Displacement(cc)
389
Max. Output(hp/rpm)
13/3600
Max.Torque(n.m/rpm)
26.5/2500
Ignition Mode
Transistorized Magneto
Starting Mode
Recoil Start
Fuel Tank Capacity(l/gal.)
6.5/1.72
Oil Capacity(l/gal.)
1.1/0.29
Consumption(g/kw.h)
385
Noise Level(7m)(dB)
73
Options
Transmission
1/2 sprocket reduction(C series)、 1/2 clutch reduction(L series)
E-start System
DP188F-E
Remote System
√
Dimensions
Dimensions(L*W*H)(mm/inch)
490*440*520/19*17*21
Dry Weight(kg/lb)
31/68
20FT Qty
220
40FT Qty
540
40HQ Qty
575
