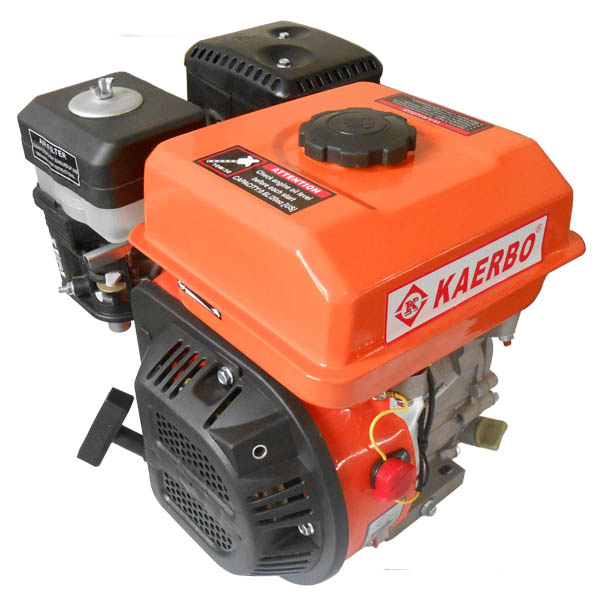

KB170F(7.5HP)

Model

KB170F

Engine

Type

4-stroke/air cooling/single cylinder/OHV
horizontal shaft

Bore*Stroke(mm)

70*54

Compression

8.2:1

Displacement(cc)

208

Max. Output(hp/rpm)

7/3600

Max.Torque(n.m/rpm)

13.5/2500

Ignition Mode

Transistorized Magneto

Starting Mode

Recoil Start

Fuel Tank Capacity(l/gal.)

3.6/0.95

Oil Capacity(l/gal.)

0.6/0.16

Consumption(g/kw.h)

380

Noise Level(7m)(dB)

67　

Options

Transmission

1/2 sprocket reduction(C series)、1/2
clutch reduction(L series)

E-start System

B series (650H-B/900H-B/
1100H-B/1300H-B/1500H-B series)

Remote System

√

Dimensions

Dimensions(L*W*H)(mm/inch)

410*370*370/16*15*15

Dry Weight(kg/lb)

16/35

20FT Qty

504

40FT Qty

1008

40HQ  Qty

1176
