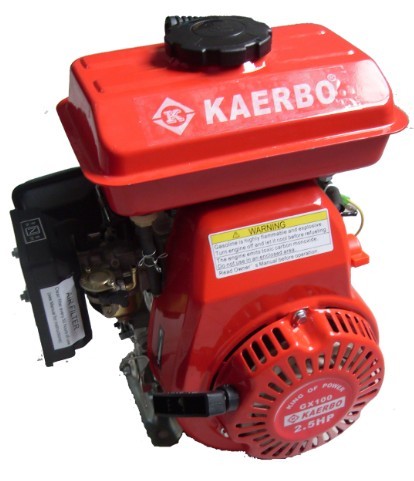

KB152F(2.5HP)

Model

KB152F

Engine

Type

SV

Bore*Stroke(mm)

52*46

Compression

6.8:1

Displacement(cc)

98

Max. Output(hp/rpm)

2.5/4200

Max.Torque(n.m/rpm)

4/2500

Ignition Mode

Transistorized Magneto

Starting Mode

Recoil Start

Fuel Tank Capacity(l/gal.)

1.4/0.36

Oil Capacity(l/gal.)

0.4/0.11

Consumption(g/kw.h)

420

Noise Level(7m)(dB)

68　

Options

Transmission

—

E-start System

Not Available

Remote System

 Not Available

Dimensions

Dimensions(L*W*H)(mm/inch)

　300*290*340/12*11*13

Dry Weight(kg/lb)

13/29

20FT Qty

980

40FT Qty

1900

40HQ  Qty

1900
