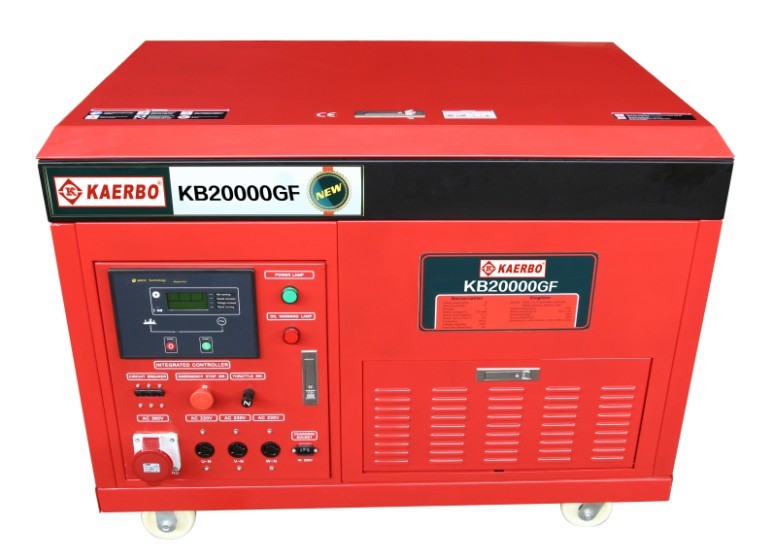

KB20000GFS

Model

KB20000GFS

Generator

Output Power (kw)

50Hz

Rated

18.0

Max.

19.0

60Hz

Rated

19.0

Max.

20.0

Engine

Phase

3  Phase

Power Factor(cos∮)

1.0

Voltage(V)

220V / 380V

Frequency(Hz)

50/60

Voltage Regulating System

AVR

Type

Rotating magnetic field by stimulating 2 ends

Model

KB465Q

Cylinder Capacity(l/gal.)

0.8/0.21

Max. Output(hp/rpm)

30

Type

4-Cylinders / water cooling/ OHV

Ignition Mode

Non-contacting Transistor

Starting Mode

Electric Start

Oil Protector

Yes

Fuel Tank Capacity(l/gal.)

30/6.8

Continuous Work Time(h)

9

Dimensions

Packing Size(mm/inch)

1140*730*790/45*29*32

Dry Weight(kg/lb)

306/675

20FT Qty

28

40FT Qty

64

40HQ Qty

96
