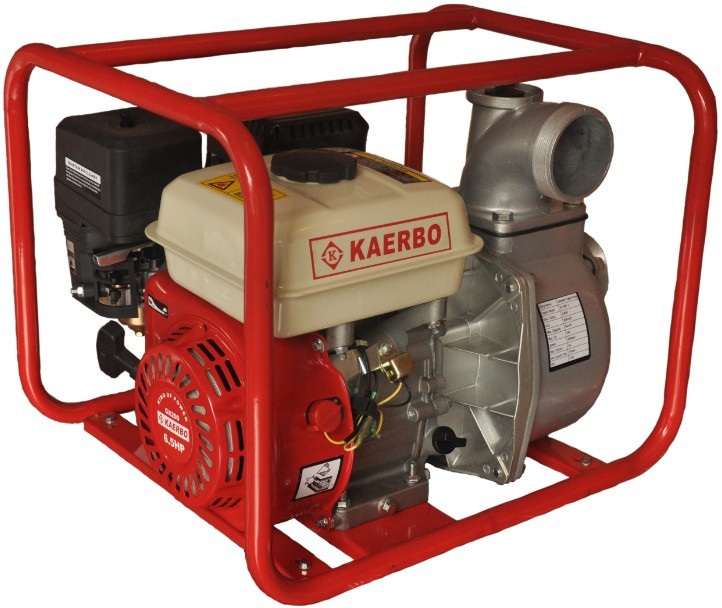

KBS20(2 inch)

Model

KBS20

Pump Set

Suck Grade(m)

6

Lift(m)

26

Volume of Flow(m3/h)

35

Diameter of in&out Pipe(mm/inch)

50/2.0

Engine

Type

KB168F

Model

4-stroke/air cooling/single cylinder/ OHV horizontal shaft

Displacement(cc)

196

Max. Output(kw)

4.8

Ignition Mode

Transistorized Magneto

Starting Mode

Recoil Start

Fuel Tank Capacity(l/gal.)

3.6/0.95

Continuous Work Time(h)

2.0

Noise Level(7m)(dB)

66

Dimensions

Dimensions(L×W×H)(mm/inch)

490*410*420/20*17*17

Dry Weight(kg/lb)

28/62

20FT Qty

290

40FT Qty

540

40HQ Qty

670
