Model No.
Basic Technology Specifications
Packing
Qty
G. W.
(kg)
Dimension
(mm)

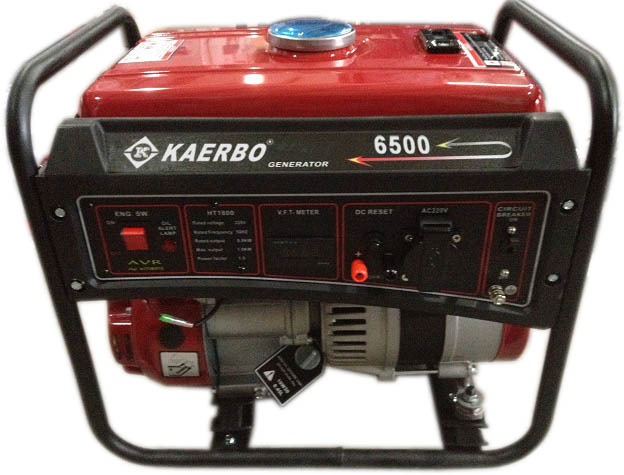

HP6500GFN
Frequency:
50 HZ /60HZ
128sets/
20FT
268sets/
40 HQ
84kg
710*540*580 mm
Rated AC Output Power(KW):
5kw(50hz), 5.5kw(60hz)
Max output power (kw) :
5.5kw(50hz), 6.5kw(60hz)
1-Phase Rated AC Voltage(V):
120V/220V/240V
DC output:
12V-8.3A
Power Factor:
1.0
oil alert / circuit breaker/
fuel gauge/volt meter
Yes
Engine:
HP188F
Engine Type
4 stroke, air-cooling,
single cylinder, OHV
Displacement:
389 cc
Ignition Mode:
Transistorized Magneto
Starting Mode:
Recoil Start /Electric start
Max Output Power:
13HP/3000 rpm
Fuel Tank Capacity :
30L / 3.9Gal
