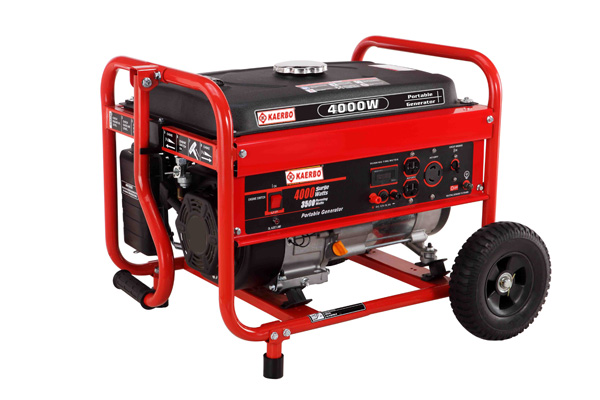

KB3500GF

Model

KB3500GF

Generator

Frequency(Hz)

50

60

Rated AC Output Power (kw)

3.0

3.2

Max. AC Output Power (kw)

3.2

3.5

1-Phase Rated AC Voltage(V)

110;220;110/220；120/240

DC Output

12V—8.3A

Power Factor(cos∮)

1.0

Engine

Model

KB170F

Type

4-stroke/air cooling/single cylinder/OHV horizontal shaft

Displacement(cc)

208

Ignition Mode

Transistorized Magneto

Starting Mode

Recoil Start/Electric Start/Remote Start

Max. Output(hp/rpm)

7/3600

Fuel Tank Capacity(l/gal.)

15/3.96

Oil Capacity(l/gal.)

0.6/0.16

Continuous Work Time(h)

10

8

Noise Level(7m)(dB)

70

70

Options

Electric Start System

√

4-wheel Vehicle Set

√

Double Voltage Switch

√

Remote Control System

√

Non-blackout Standby Control System

√

Digital Overload Protection Control System

√

Dimensions

Dimensions(L×W×H)(mm/inch)

610*460*470/24*18*19

Dry Weight(kg/lb)

44/97

20FT Qty

225

40FT Qty

475

40HQ Qty

475
