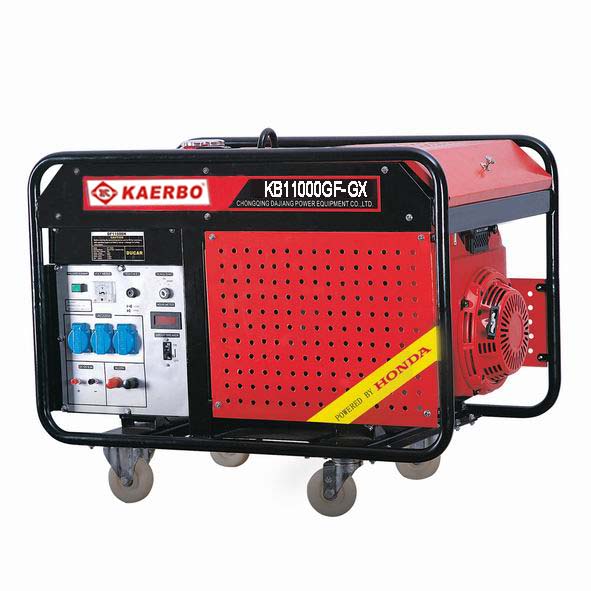

HONDA Generator

Model

KB11000GF-GX

Generator

Output Power (kw)

50Hz

Rated

9.0

Max.

10.0

60Hz

Rated

10.0

Max.

11.0

Engine

Phase

Single Phase

Power Factor(cos∮)

1.0

Voltage(V)

220V

Frequency(Hz)

50/60

Voltage Regulating System

AVR

Type

Rotating magnetic field by stimulating 2 ends

Model

HONDA GX620K

Cylinder Capacity(l/gal.)

0.614/0.17

Max. Output(hp/rpm)

20

Type

4-stroke/air cooling/ OHV

Ignition Mode

Non-contacting Transistor

Starting Mode

Electric Start

Oil Protector

Yes

Fuel Tank Capacity(l/gal.)

26/6.8

Continuous Work Time(h)

9

Dimensions

Packing Size(mm/inch)

1080*660*800/43*26*32

Dry Weight(kg/lb)

188/415

20FT Qty

28

40FT Qty

72

40HQ Qty

108

Model

KB13000GF-GX

Output Power (kw)

50Hz

Rated

11.0

Max.

12.0

60Hz

Rated

12.0

Max.

13.0

Phase

Single Phase

Power Factor(cos∮)

1.0

Voltage(V)

220V

Frequency(Hz)

50/60

Voltage Regulating System

AVR

Type

Rotating magnetic field by stimulating 2 ends

Model

HONDA  GX670K

Cylinder Capacity(l/gal.)

0.67/0.18

Max. Output(hp/rpm)

24

Type

4-stroke/air cooling/ OHV

Ignition Mode

Non-contacting Transistor

Starting Mode

Electric Start

Oil Protector

Yes

Fuel Tank Capacity(l/gal.)

26/6.8

Continuous Work Time(h)

9

Packing Size(mm/inch)

1080*660*800/43*26*32

Dry Weight(kg/lb)

190/419

20FT Qty

28

40FT Qty

72

40HQ Qty

108
