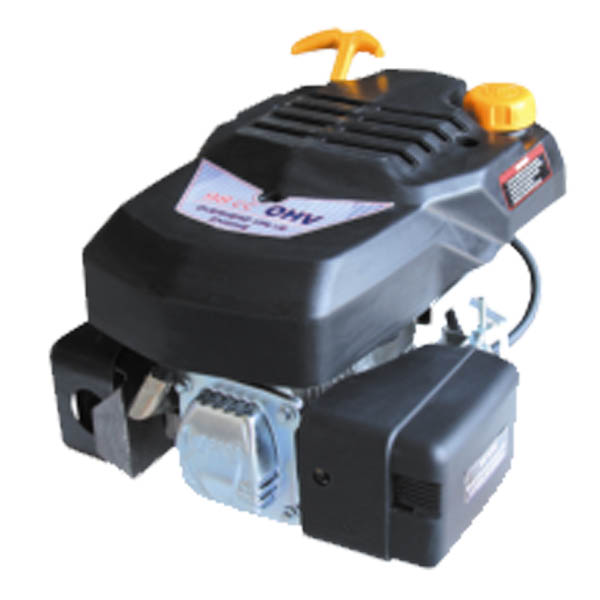

KB1P70FB(196cc)

Engine type

Single cylinder, 4-stroke, air cooling, OHV

Displacement

196cc

Bore×Stroke

70*51

Compression ratio

8.5:1

Max output

6.0HP/3600rpm

Max torque

10N.m/28000rpm

PTO shaft rotation

Counterclockwise(see from PTO)

Noise(≤7m)

68dB

Ignition system

Transistorized Magneto

Starting system

Recoil start

Oil capacity

0.6l/0.16gal

Fuel tank capacity

0.9l/0.32gal.

Net weight

14KG(31lb)

Dimension

420×360×390mm

20FT Qty

300

40FT Qty

900

40HQ Qty

900
