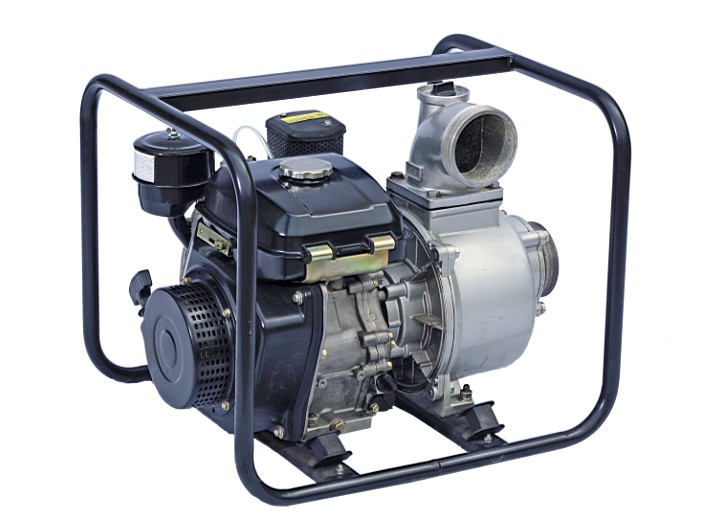

KBS40D

4 INCH DIESEL WATER PUMP
Model	KBS40D
Suction port diameter(mm/inch)	100(4inch)
Discharge port diameter(mm/inch)	100(4inch)
Maximum capacity(m³)	80m³/h
Max.lift head (m)	20m
Max suction head(m)	7m
Self-priming time (s/4m)	160S
Water pump type	Attracts automatically
Starter system	Recoil start（Electric start)
Engine Model	TP173F
Engine Type	Single cylinder, tilt, 4-stroke, swirl chamber, forcible air-cool
Bore×Stroke(mm)	73×68
Displacement (cc)	284
Rated output power［kW(HP)］	4.41KW(6HP)
Engine speed (r/min)	3000
Fuel type	0＃（Summer),-10＃(Winter) Diesel oil
Fuel tank capacity (L)	4L
Lube type	SAE10W30 (Above CC grade)
Lube capacity (L)	0.9L
Packing size (L×W×H)(mm)	635×530×545 mm
Net weight (kg)	50 kg
